    ECHU ETHERNET FLEX CAT7 Cable, ENTHERNET CAT7 cable suitable for harsh industrial environments

    Ask Lasest Price
    Brand Name : ECHU
    Model Number : ETHERNET FLEX CAT7
    Certification : CE
    Price : USD01-USD1.638/M
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000KM/day
    • Product Details
    • Company Profile

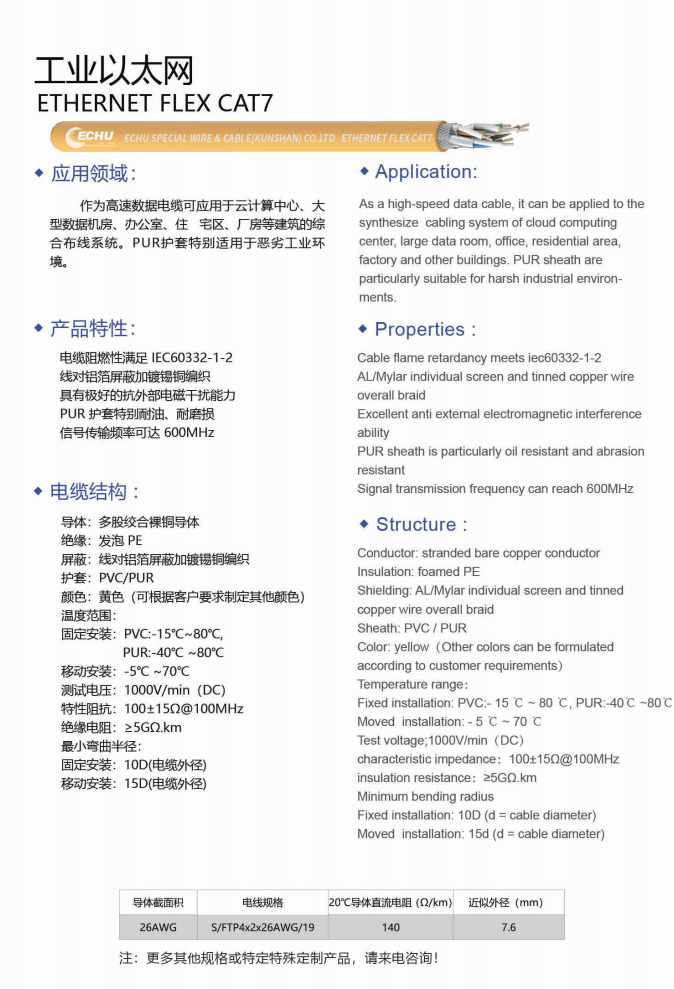

    ECHU ETHERNET FLEX CAT7 Cable, ENTHERNET CAT7 cable suitable for harsh industrial environments

    The Ethernet CAT5e Cable is an industrial-grade network cable utilizing high-purity oxygen-free copper conductors. ETHERNET CABLE FLEX CAT 7


    Application:

    As a high-speed data cable, it is applied to the synthesize cabling system of cloud computing center, large data room, office, residential area, factory and other buildings. PUR sheath are paerticularly suitable for harsh industrial environments


    Properties:

    Cable flame retardancy meets IEC60332-1-2

    AL/Mylar individual screen and tinned copper wire overall braid

    Excellent anti external electromagnetic interference ability

    PUR sheath is particularly oil resistant and abrasion resistant

    The signal transmission frequency can reach 600MHZ


    Structure:

    Conductor: standed bare copper conductor

    Insulation: foamed PE

    Shielding: AL/Mylar individual screen and tinned copper wire overall braid

    Sheath: PVC/PUR

    Color: Yellow (other colors can be formulated according to customer requirements)

    Temperature range:

    Fixed installation: PVC: -15℃ to 80℃; PUR: -40℃ to +80℃

    Moved installation: -5℃-+70℃

    Test Voltage: 1000V/min (DC)

    Characteristic impedance: 100+/-15Ω @100MHZ

    Insulation resistance: >/= 5g Ω .Km

    Mininum beding radius

    Fixed installation: 10D (d=cable diameter)

    Moved installation: 15D (d=cable diameter)
