    ECHU Flexible Round Traveling Control Cable for cranes or other appliances RVV(1G) 5Cx1.5SQMM in black colr

    Ask Lasest Price
    Brand Name : ECHU
    Model Number : RVV(1G), RVV(2G)
    Certification : CE
    Price : USD0.116-USD0.907/m
    Payment Terms : T/T, Western Union, L/C
    Delivery Time : 10days after receiving payment
    Supply Ability : 100000km/week
    • Product Details
    • Company Profile

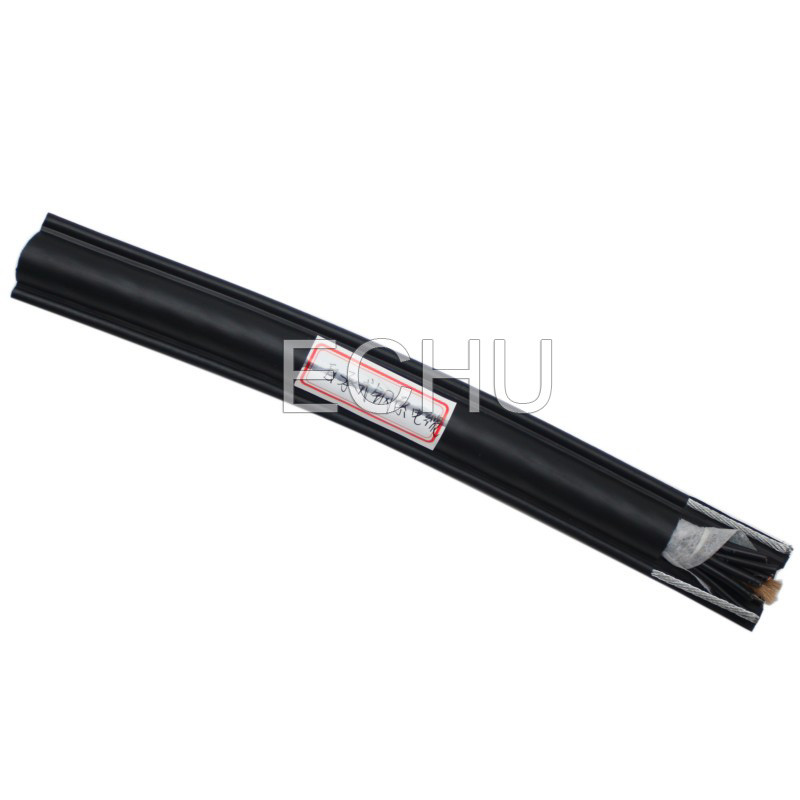

    ECHU Flexible Round Traveling Control Cable for cranes or other appliances RVV(1G) 5Cx1.5SQMM in black colr

    Pendant Crane Cable from Factory
    Applications:
    It is the control cable being used for cranes and other appliances in dry or wet environment (indoor). For its special flexibility, it also can be used for non-continuous installation or fixation, but cannot work as elevator cables. Juted insulated cable rope among cores functions as tensile resistance, there is non-woven fabric to release impact between cores and sheath.
    Properties:
    In the condition of ultra-height, we recommend to use cable with 2 steels whose broken pulling force reaches 10.4KN and the height 150m.
    For the adoption of modified PVC sheath, the product has an excellent properties and safety service.
    Structure:
    Conductor: Fine strands of oxygen-free copper wire, acc. To VDE0295, class 5
    Color: Various colour cores with number acc. To JISC3306
    Black with white number and green/yellow acc. To IEC227
    Inner liner: Non-woven fabric wrapping to release impact
    Steel rope: One or two self-supporting steel rope is used to carry tensile force in working.
    Outer sheath: Special PVC, black(RAL9005)
    Technical data:
    Rated voltage: 1.5mm 450/750V
    Test voltage: 1.5mm 3000V
    Temperature range: -15 degree to +70 degree; (or -40 degree to 105 degree)

    ECHU Flexible Round Traveling Control Cable for cranes or other appliances RVV(1G) 5Cx1.5SQMM in black colrECHU Flexible Round Traveling Control Cable for cranes or other appliances RVV(1G) 5Cx1.5SQMM in black colrECHU Flexible Round Traveling Control Cable for cranes or other appliances RVV(1G) 5Cx1.5SQMM in black colr

    TYPE
    CORES

    SPECIFICATION

    STEEL NO.

    STEEL DIAMETER mm

    WEIGHT(KG/KM)

    MEASUREMENTmm

    RVV(2G)

    2C

    1.25

    2

    1.3

    175

    17.3

    RVV(2G)

    3C

    1.25

    2

    1.3

    192

    17.8

    RVV(2G)

    4C

    1.25

    2

    1.3

    221

    18.7

    RVV(2G)

    5C

    1.25

    2

    1.3

    253

    19.7

    RVV(2G)

    6C

    1.25

    2

    1.3

    287

    20.7

    RVV(2G)

    7C

    1.25

    2

    1.6

    329

    24

    RVV(2G)

    8C

    1.25

    2

    1.6

    369

    25.4

    RVV(2G)

    9C

    1.25

    2

    1.6

    410

    26.4

    RVV(2G)

    10C

    1.25

    2

    1.6

    445

    26.4

    RVV(2G)

    11C

    1.25

    2

    1.6

    481

    26.9

    RVV(2G)

    12C

    1.25

    2

    1.6

    489

    26.9

    RVV(2G)

    13C

    1.25

    2

    1.6

    534

    27.8

    RVV(2G)

    14C

    1.25

    2

    1.6

    542

    27.8

    RVV(2G)

    15C

    1.25

    2

    1.6

    590

    28.8

    RVV(2G)

    16C

    1.25

    2

    2.5

    639

    30.9

    RVV(2G)

    17C

    1.25

    2

    2.5

    690

    31.9

    RVV(2G)

    18C

    1.25

    2

    2.5

    698

    31.9

    RVV(2G)

    19C

    1.25

    2

    2.5

    719

    31.9

    RVV(2G)

    20C

    1.25

    2

    2.5

    744

    32.4

    RVV(2G)

    21C

    1.25

    2

    2.5

    780

    32.9

    RVV(2G)

    22C

    1.25

    2

    2.5

    877

    34.3

    RVV(2G)

    23C

    1.25

    2

    2.5

    896

    35.3

    RVV(2G)

    24C

    1.25

    2

    2.5

    902

    35.3

    RVV(2G)

    25C

    1.25

    2

    2.5

    940

    35.9

    RVV(2G)

    26C

    1.25

    2

    2.5

    960

    35.9

    RVV(2G)

    27C

    1.25

    2

    2.5

    969

    35.9

    RVV(2G)

    28C

    1.25

    2

    2.5

    1019

    36.7

    RVV(2G)

    29C

    1.25

    2

    2.5

    1028

    36.7

    RVV(2G)

    30C

    1.25

    2

    2.5

    1048

    36.7

    RVV(2G)

    2C

    1.5

    2

    1.3

    189

    17.4

    RVV(2G)

    3C

    1.5

    2

    1.3

    207

    17.9

    RVV(2G)

    4C

    1.5

    2

    1.3

    239

    18.8

    RVV(2G)

    5C

    1.5

    2

    1.3

    276

    19.8

    RVV(2G)

    6C

    1.5

    2

    1.3

    315

    20.9

    RVV(2G)

    7C

    1.5

    2

    2.5

    403

    26.3

    RVV(2G)

    8C

    1.5

    2

    2.5

    452

    27.7

    RVV(2G)

    9C

    1.5

    2

    2.5

    502

    28.7

    RVV(2G)

    10C

    1.5

    2

    2.5

    536

    28.7

    RVV(2G)

    11C

    1.5

    2

    2.5

    575

    29.3

    RVV(2G)

    12C

    1.5

    2

    2.5

    582

    29.3

    RVV(2G)

    13C

    1.5

    2

    2.5

    634

    30.2

    RVV(2G)

    14C

    1.5

    2

    2.5

    640

    30.2

    RVV(2G)

    15C

    1.5

    2

    2.5

    698

    31.2

    RVV(2G)

    16C

    1.5

    2

    2.5

    704

    31.2

    RVV(2G)

    17C

    1.5

    2

    2.5

    765

    32.2

    RVV(2G)

    18C

    1.5

    2

    2.5

    772

    32.2

    RVV(2G)

    19C

    1.5

    2

    2.5

    791

    32.2

    RVV(2G)

    20C

    1.5

    2

    2.5

    820

    32.7

    RVV(2G)

    21C

    1.5

    2

    2.5

    861

    33.2

    RVV(2G)

    22C

    1.5

    2

    2.5

    976

    34.6

    RVV(2G)

    23C

    1.5

    2

    2.5

    1006

    35.7

    RVV(2G)

    24C

    1.5

    2

    2.5

    1010

    35.7

    RVV(2G)

    25C

    1.5

    2

    2.5

    1054

    36.2

    RVV(2G)

    26C

    1.5

    2

    2.5

    1073

    36.2

    RVV(2G)

    27C

    1.5

    2

    2.5

    1080

    36.2

    RVV(2G)

    28C

    1.5

    2

    2.5

    1141

    37.1

    RVV(2G)

    29C

    1.5

    2

    2.5

    1149

    37.1

    RVV(2G)

    30C

    1.5

    2

    2.5

    1168

    37.1
