    Single Core Solar Cable, PV Solar Cable, DC Cable, Red PV Cable

    Ask Lasest Price
    Brand Name : ECHU
    Model Number : PV1-F, H1Z2Z2-K
    Certification : TUV Certificate
    Price : USD0.102/M-USD0.898/M
    Payment Terms : T/T, Western Union
    Supply Ability : 1000KM/Week
    Delivery Time : 10days
    • Product Details
    • Company Profile

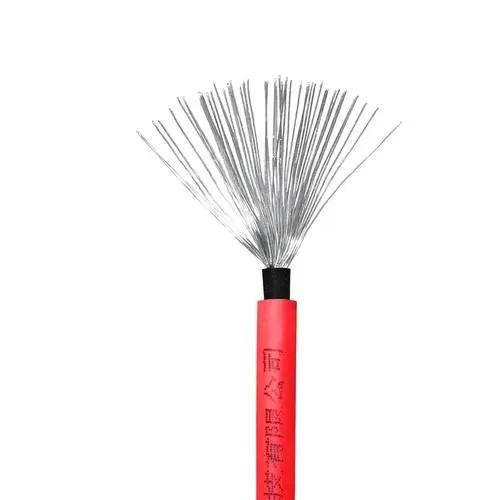

    Single Core Solar Cable, PV Solar Cable, DC Cable, Red PV Cable


    PV1-F Solar PV cable with TUV certificate


    Features:
    1. Conductor: Copper acc. IEC 60228+EN60228, VDE0295 CLASS5, Tinned, Fine stranded copper conductor.
    2. Temperature range for application is from -40C to 90C.
    Max. Temperature at conductor can be 120C.
    3. The permitted short circuit temperature referring to a period of 5s is 200C.
    4. The solar PV cable is resistant to UV, ozone and hydrolysis.
    5. It is also known for its high mechanical robustness and great resistance to water, oil and chemicals.
    6. This solar PV cable is TUV approved, so customers can feel secure in using it.

    Main Technical Specification of PV1-F 1*35.0 MM2 Solar PV cable
    Specification Type PV1-F 1*35.0 MM2
    Rated Voltage AC 0.6/1KV; DC 1.8KV
    Test Voltage 6500V
    Standard IEC 60228+EN60228, VDE0295 CLASS5
    Nominal Cross-sectional Area 35.0 mm2
    Flame Resistance IEC60332-1-2+EN60332-1-2
    Inner Sheath XLPO sheath UL4703
    Sheath XLPO sheath UL4703
    Cable Approx. OD 14.7 MM
    Cert. RoHS + TUV

    Specification TypePV1-F 1*35.0 MM2
    Rated VoltageAC 0.6/1KV; DC 1.8KV
    Test Voltage6500V
    StandardIEC 60228+EN60228, VDE0295 CLASS5
    Nominal Cross-sectional Area35.0 mm2
    Flame ResistanceIEC60332-1-2+EN60332-1-2
    Inner SheathXLPO sheath UL4703
    SheathXLPO sheath UL4703
    Cable Approx. OD14.7 MM
    Cert.RoHs + TUV
