    Charging Cables for Electrical Vehicles 300V H07BZ5-F 62893IEC123

    Ask Lasest Price
    Brand Name : ECHU
    Model Number : H07BZ5-F 62893IEC123
    Certification : TUV SUD
    Price : USD0.101-USD10.954/m
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10000KM/week
    Delivery Time : 10day after receiving payment
    • Product Details
    • Company Profile

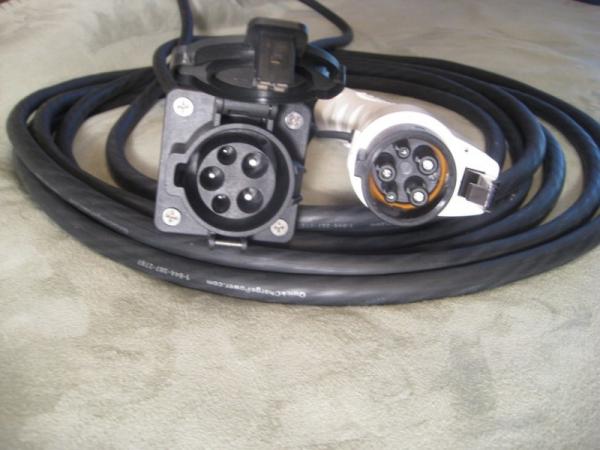

    Charging Cables for Electrical Vehicles 300V H07BZ5-F 62893IEC123

    Charging Cables

    ·Applications:
    applicable to charging cables of rated voltages up to and including AC 450/750V or DC 1000V for connection set for conductive charging of electric vehicles.

    ·Properties:
    Conductor:Multiple stranded conductor
    Insulation:EVI-2
    Jacket:PUR

    ◆ PRODUCT DESCRIPTION:
    Temperature range:-40℃~90℃
    Rating voltage:AC 450/750V/DC 1000V
    Reference standard:EN 50620:2017,IEC
    62893-3:2017
    Flame Test:IEC 60331-1-2
    Min Bending radius:6xD

    TypeSizeConductor Stranded OD mm(Ref.)Over diameter Non Shielded mm (Ref)Max.Conductor resistance mΩ/m@20℃
    H07BZ5-F 62893IEC1233x1.5+(0~6)x(0.5~1.0)1.69.23.3
    3×2.5+10-6)x(0.5~1.02.1117.98
    3x4.0+(0-6)x(0.5~1.02.611.84.95
    3x6.0+10-6)x(0.5~1.03.413.53.3
    3x10.0+(0~6)x(0.5~1.0)4.616.51.91
    3x16.0+(0~6)x(0.5~1.0)5.919.51.21
    5x2.5+(0~6)x(0.5~1.0)2.1147.98
    5w40+10-6)x(0.5~1.02.615.54.95
    5x6.0+(0~6)x(0.5~1.0)3.4173.3
    5x10.0+(0~6)x(0.5~1.0)4.620.51.91
    5×16.0+(0~6)x(0.5~1.0)5.924.51.21
