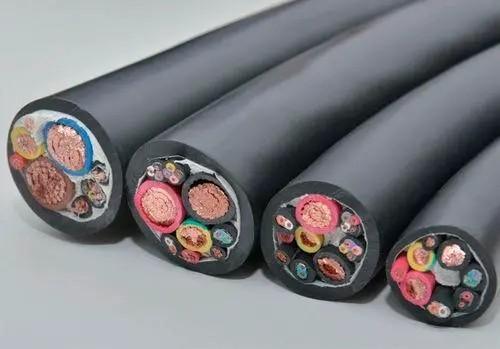

    Charging Cables for Electrical Vehicles EVDC-RS90S90 EVDC-RS90S90PS90

    Ask Lasest Price
    Brand Name : ECHU
    Model Number : EVDC-RS90S90 EVDC-RS90S90PS90
    Certification : TUV SUD
    Price : USD0.101-USD10.958/m
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 10000KM/week
    Delivery Time : 10day after receiving payment
    • Product Details
    • Company Profile

    Charging Cables for Electrical Vehicles EVDC-RS90S90 EVDC-RS90S90PS90

    Charging Cables


    ·Applications:
    applicable to charging cables of rated voltages up to and including DC 1000V for connection set for conductive charging of electric vehicles.

    ·Properties:
    Conductor:Multiple stranded conductor
    Insulation:TPE
    Jacket:TPE
    Colour:Black

    ◆ PRODUCT DESCRIPTION:
    Temperature range:-40℃ ~90℃
    Rating voltage:DC 1000V
    Reference standard:GB/T 33594-2017
    Flame Test:IEC 60331-1-2
    Min Bending radius:6xD

    TypeSizeConductor Stranded OD mm(Ref.)Over diameter Non Shielded mm (Ref)Max.Conductor resistance mΩ/m@20℃
    EVDC-RS90sgn EVDC-RS90S90PS902x16mm2+16mm2+2smm2+2N2.75mm2)+PBx075mm2)5.9311.21
    225mm2+25mm2+2x4mm2+2P20.75mm2y+P/Bx075mm2)7.3350.78
    2x35mm2+25mm2+2x4mm2+2PN260.75mm2)+P|Bx0.75mm2)8370.554
    2x50mm2+25mm2+2x4mm2+2R(200.75mm2)+PB₀.75mm2)10.2390.386
    2x70mm2+25mm2+2x4mm2+2P(200.75mm2)+P|B×0.75mm2)12.3420.272
    2x95mm2+25mm2+2x4mm2+2P(200.75mm2)+P|B×0.75mm2)14.5460.206
