    Flexible Oil resistant Control Cable with water proof, cool/flame resistance RVVY/RVVYP in black/grey/orange color

    Ask Lasest Price
    Brand Name : ECHU
    Model Number : RVVY, RVVYP
    Certification : CE
    Price : USD0.516-USD0.768/m
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100KM/week
    Delivery Time : 7 to 10days after receiving payment
    • Product Details
    • Company Profile

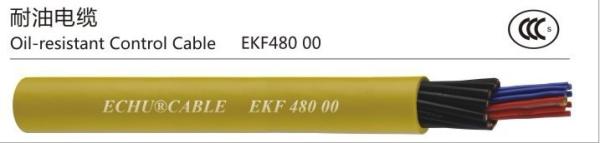

    Flexible Oil resistant Control Cable with water proof, cool/flame resistance RVVY/RVVYP in black/grey/orange color

    PVC Control Cable Anti-Oil
    Applications:

    As installation cable, it is used under dry or wet indoor situation, for moving or industrial envoronment condition, such as machine tool, wooden tool, qrinding machine.

    Properties:

    Water proof, oil resistance, cool resistance, flame resistance, normal working temperature is 40C
    Its bending for life is more than normal installation cable's, but could not be used as tray cable

    Standards:

    Acc. to IEC227-7: 1995 GB5023.7-2008
    Oil resistance: ASTM GB/T2951.5

    Structure:
    Conductor: Fine oxygen-free coppper acc VDE0295 CLASS 5
    Insulation: PVC
    Sheath: Modified oil reistance PVC Sheath
    Black (RAL9005) or Grey (RAL7001)
    Rated Voltage: 300/500V
    Testing Voltage: 2500V

    Technical data:
    Working temperature:
    Fixed installation: -40C to 105C
    Flexible Installation: -5C to 70C
    The minimum bending radius:
    Fixed Installation: 4 x external diameter
    Flexiing Installation: 15x external diameter
    As UL the most is 16AWG voltage 300/300V 80C

    TypeSizeConductorWeight KG/KMO.D. Down(mm)O.D. UP (mm)
    RVVY1.5*2C510.19104.77.78.5
    RVVY1.5*3C510.19127.38.29
    RVVY1.5*4C510.19157.29.19.9
    RVVY1.5*5C510.19194.69.911.4
    RVVY1.5*6C510.19233.610.912.4
    RVVY1.5*7C510.19275.21213.5
    RVVY1.5*8C510.19326.413.414.9
    RVVY1.5*9C510.19377.214.315.8
    RVVY1.5*10C510.19375.314.415.9
    RVVY1.5*11C510.19398.414.517
    RVVY1.5*12C510.19414.614.517
    RVVY1.5*13C510.19455.115.417.9
    RVVY1.5*14C510.1947115.417.9
    RVVY1.5*15C510.19514.416.418.9
    RVVY1.5*16C510.19530.516.418.9
    RVVY1.5*17C510.19575.417.419.9
    RVVY1.5*18C510.19591.717.419.9
    RVVY1.5*19C510.19614.817.419.9
    RVVY1.5*20C510.19642.717.920.4
    RVVY1.5*21C510.19677.318.420.9
    RVVY1.5*22C510.19689.919.322.3
    RVVY1.5*23C510.19729.220.423.4
    RVVY1.5*24C510.19752.320.423.4
    RVVY1.5*25C510.1978420.923.9
    RVVY1.5*26C510.19807.220.923.9
    RVVY1.5*27C510.19830.420.923.9
    RVVY1.5*28C510.19868.321.824.8
    RVVY1.5*29C510.19891.521.824.8
    RVVY1.5*30C510.19914.721.824.8
    RVVY1.5*31C510.19954.722.825.8
    RVVY1.5*32C510.19977.922.825.8
    RVVY1.5*33C510.19100122.825.8
    RVVY1.5*34C510.191042.623.926.9
    RVVY1.5*35C510.191065.723.926.9
    RVVY1.5*36C510.191088.923.926.9
    RVVY2.0*2C670.191268.49.2
    RVVY2.0*3C670.19154.18.99.7
    RVVY2.0*4C670.19190.99.711.2
    RVVY2.0*5C670.19236.710.812.3
    RVVY2.0*6C670.19284.61213.5
    RVVY2.0*7C670.19335.613.114.6
    RVVY2.0*8C670.19397.914.216.7
    RVVY2.0*9C670.19460.115.217.7
    RVVY2.0*10C670.19458.615.317.8
    RVVY2.0*11C670.19487.315.918.4
    RVVY2.0*12C670.19507.915.918.4
    RVVY2.0*13C670.19557.516.919.4
    RVVY2.0*14C670.19577.616.919.4
    RVVY2.0*15C670.19630.81820.5
    RVVY2.0*16C670.19651.31820.5
    RVVY2.0*17C670.19706.218.621.6
    RVVY2.0*18C670.19726.718.621.6
    RVVY2.0*19C670.19755.718.621.6
    RVVY2.0*20C670.19790.219.222.2
    RVVY2.0*21C670.19832.919.822.8
    RVVY2.0*22C670.19821.120.823.8
    RVVY2.0*23C670.19866.421.924.9
    RVVY2.0*24C670.19895.321.924.9
    RVVY2.0*25C670.19932.922.525.5
    RVVY2.0*26C670.19961.922.525.5
    RVVY2.0*27C670.19990.822.525.5
    RVVY2.0*28C670.191034.723.526.5
    RVVY2.0*29C670.191063.723.526.5
    RVVY2.0*30C670.191092.723.526.5
    RVVY2.0*31C670.191138.624.627.6
    RVVY2.0*32C670.191167.624.627.6
    RVVY2.0*33C670.191196.624.627.6
    RVVY2.0*34C670.19124425.728.7
    RVVY2.0*35C670.19127325.728.7
    RVVY2.0*36C670.19130225.728.7
    RVVY2.5*2C840.19153.69.310.1
    RVVY2.5*3C840.19188.29.711.2
    RVVY2.5*4C840.19233.310.912.4
    RVVY2.5*5C840.19289.812.113.6
    RVVY2.5*6C840.19348.913.414.9
    RVVY2.5*7C840.19411.714.216.7
    RVVY2.5*8C840.19488.715.918.4
    RVVY2.5*9C840.19565.71719.5
    RVVY2.5*10C840.19563.617.219.7
    RVVY2.5*11C840.1959917.820.3
    RVVY2.5*12C840.19624.217.820.3
    RVVY2.5*13C840.19685.518.921.4
    RVVY2.5*14C840.19710.218.921.4
    RVVY2.5*15C840.19775.919.722.7
    RVVY2.5*16C840.19801.119.722.7
    RVVY2.5*17C840.198692124
    RVVY2.5*18C840.19894.32124
    RVVY2.5*19C840.199302124
    RVVY2.5*20C840.19972.521.624.6
    RVVY2.5*21C840.191025.422.225.2
    RVVY2.5*22C840.191136.82427
    RVVY2.5*23C840.191178.625.328.3
    RVVY2.5*24C840.191201.325.328.3
    RVVY2.5*25C840.191256.125.928.9
    RVVY2.5*26C840.191291.925.928.9
    RVVY2.5*27C840.191258.825.928.9
    RVVY2.5*28C840.191316.42730
    RVVY2.5*29C840.191352.22730
    RVVY2.5*30C840.191387.92730
    RVVY2.5*31C840.191448.628.331.3
    RVVY2.5*32C840.191484.328.331.3
    RVVY2.5*33C840.191520.128.331.3
    RVVY2.5*34C840.191582.929.532.5
    RVVY2.5*35C840.191618.729.532.5
    RVVY2.5*36C840.191654.529.532.5
    RVVY4.0*2C770.25211.810.512
    RVVY4.0*3C770.25262.911.212.7
    RVVY4.0*4C770.2532812.514
    RVVY4.0*5C770.25408.61415.5
    RVVY4.0*6C770.25492.71517.5
    RVVY4.0*7C770.2558216.519
    RVVY4.0*8C770.25690.218.521
    RVVY4.0*9C770.25798.819.322.3
    RVVY4.0*10C770.25799.519.522.5
    RVVY4.0*11C770.25851.220.223.2
    RVVY4.0*12C770.25890.120.223.2
    RVVY4.0*13C770.25977.121.524.5
    RVVY4.0*14C770.251015.221.524.5
    RVVY4.0*15C770.251108.122.925.9
    RVVY4.0*16C770.251146.822.925.9
    RVVY4.0*17C770.251242.724.427.4
    RVVY4.0*18C770.251281.524.427.4
    RVVY4.0*19C770.251334.624.427.4
    RVVY4.0*20C770.251396.425.228.2
    RVVY4.0*21C770.251472.225.928.9
    RVVY4.0*22C770.251500.927.930.9
    RVVY4.0*23C770.251585.329.432.4
    RVVY4.0*24C770.251638.429.432.4
    RVVY4.0*25C770.25170830.233.2
    RVVY4.0*26C770.251761.130.233.2
    RVVY4.0*27C770.251814.230.233.2
    RVVY4.0*28C770.251896.131.534.5
    RVVY4.0*29C770.251949.231.534.5
    RVVY4.0*30C770.252002.331.534.5
    RVVY4.0*31C770.252088.332.935.9
    RVVY4.0*32C770.252141.432.935.9
    RVVY4.0*33C770.252194.432.935.9
    RVVY4.0*34C770.252283.434.437.4
    RVVY4.0*35C770.252336.534.437.4
    RVVY4.0*36C770.252389.634.437.4
    RVVY6.0*2C770.3128512.113.6
    RVVY6.0*3C770.31357.51314.5
    RVVY6.0*4C770.3144814.516
    RVVY6.0*5C770.31558.715.618.1
    RVVY6.0*6C770.31673.817.319.8
    RVVY6.0*7C770.31795.61921.5
    RVVY6.0*8C770.31941.920.823.8
    RVVY6.0*9C770.31108922.225.2
    RVVY6.0*10C770.311096.122.525.5
    RVVY6.0*11C770.311169.423.326.3
    RVVY6.0*12C770.311226.423.326.3
    RVVY6.0*13C770.311345.224.827.8
    RVVY6.0*14C770.311401.124.827.8
    RVVY6.0*15C770.311527.726.429.4
    RVVY6.0*16C770.311584.326.429.4
    RVVY6.0*17C770.311714.728.231.2
    RVVY6.0*18C770.311771.528.231.2
    RVVY6.0*19C770.311846.828.231.2
    RVVY6.0*20C770.311933.32932
    RVVY6.0*21C770.312037.829.932.9
    RVVY10*2C770.44891618.5
    RVVY10*3C770.4607.517.219.7
    RVVY10*4C770.476018.821.8
    RVVY10*5C770.4923.12124
    RVVY10*6C770.41093.523.426.4
    RVVY10*7C770.41262.325.828.8
    RVVY10*8C770.41455.428.931.9
    RVVY10*9C770.41645.73134
    RVVY10*10C770.41820.531.334.3
    RVVY10*11C770.41996.132.535.5
    RVVY10*12C770.42086.232.535.5
    RVVY16*2C1210.4677.718.621.1
    RVVY16*3C1210.4850.819.522.5
    RVVY16*4C1210.41069.121.924.9
    RVVY16*5C1210.41301.824.527.5
    RVVY16*6C1210.41544.227.230.2
    RVVY16*7C1210.41784.53033
    RVVY16*8C1210.42057.133.636.6
    RVVY16*9C1210.42326.53639
    RVVY25*2C1890.41036.222.525.5
    RVVY25*3C1890.41306.924.227.2
    RVVY25*4C1890.41646.427.230.2
    RVVY25*5C1890.42007.730.433.4
    RVVY25*6C1890.42383.833.836.8
    RVVY35*2C2650.4149927.630.6
    RVVY35*3C2650.41886.129.732.7
